Standard Panel Colors
*Production is also available in other RAL color codes upon request.

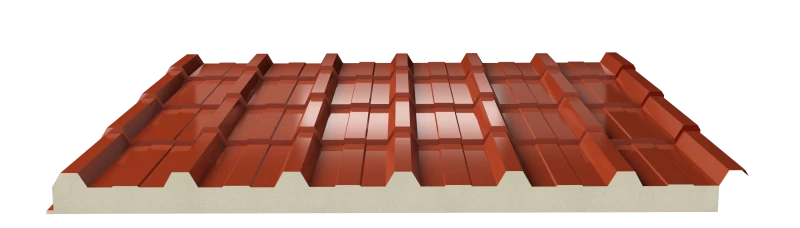

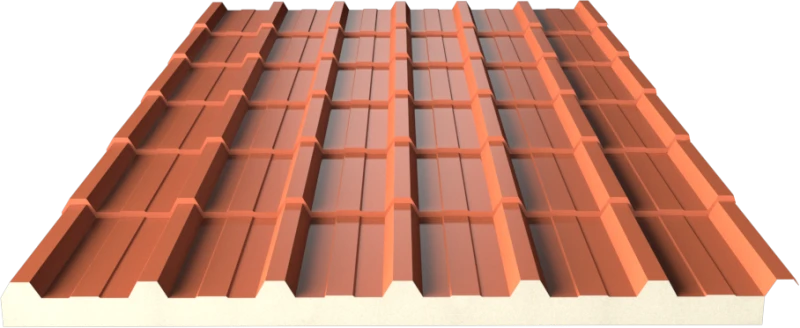

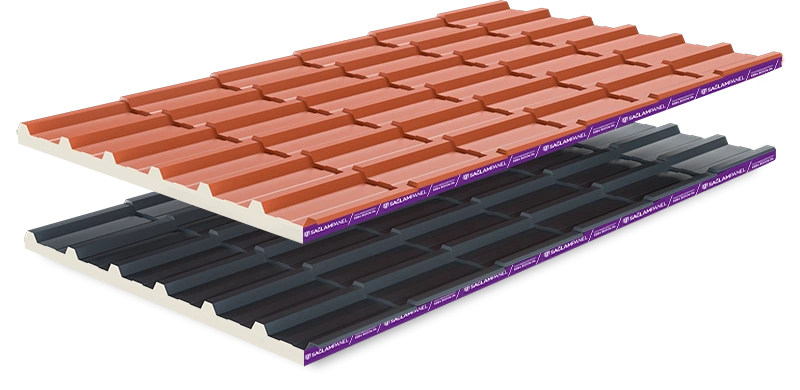

Tile Patterned Roof Panel
Produced for the first time in Turkey, the unique tile patterned roof panels stand out with their aesthetic design, ergonomic features and easy-to-apply structure. These special panels not only offer visual appeal but also aim to reduce earthquake risk as an innovative roof solution.
| Useful Width | 1000 mm |
| Minimum Length | 2 meters |
| Maximum Length | 15 meters |
| Sheet Thickness | 0,30mm – 0,40mm – 0,50mm – 0,60mm – 0,70mm |
| Insulation Thickness | 40mm – 50mm – 60mm – 80mm – 100mm – 120mm – 150mm |
| Rib | 7 |
| Top Layer | Prepainted Galvanized Sheet |
| Bottom Layer | Prepainted Galvanized Sheet |
| PUR /PIR Density | 38 – 42 Dansite / m3 |
| Non-Flammability Class | B1 / B2 |
Usage Areas
Housing
Industrial Facility
Agricultural Structures
Social Facility
Warehouse / Bonded Warehouse
